Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, metal deck panel, standing seam panel, K span panel and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction. Our metal deck roll forming machine could produce floor deck, roof deck, form deck and vigacero (more popular in Peru) according to your drawing. The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Linbay Machinery is always your best choice of metal deck roll forming machine. Different countries has different its own commonly used profiles and name. Here are some machines more ordered by our customers: USA (ANSI Standard steel deck) -- 1.5’’ Floor Deck -- 2’’ Floor Deck -- 3’’ Floor Deck -- Comflor 46 -- Comflor 51 -- Comflor 60 -- Comflor 80 -- Comflor 100 -- Comflor 210 -- Comflor 225 -- B Deck (HSB-36) -- N Deck (N-24) -- 1.5’’ F Deck America Latina: -- Losacero 15 -- Losacero 25 -- TRN-100 -- Vigacero Romania: T60 Corrugated steel deck We have exported to Saudi Arabia, Indonesia, India, USA, Mexico, Dubai, Russia, Ukraine, Malaysia, Turkey, Syria, Iraq, Angola etc. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles. In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, furring channel roll forming machine, ceiling T bar roll forming machine, wall angle roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc.
Real Case A

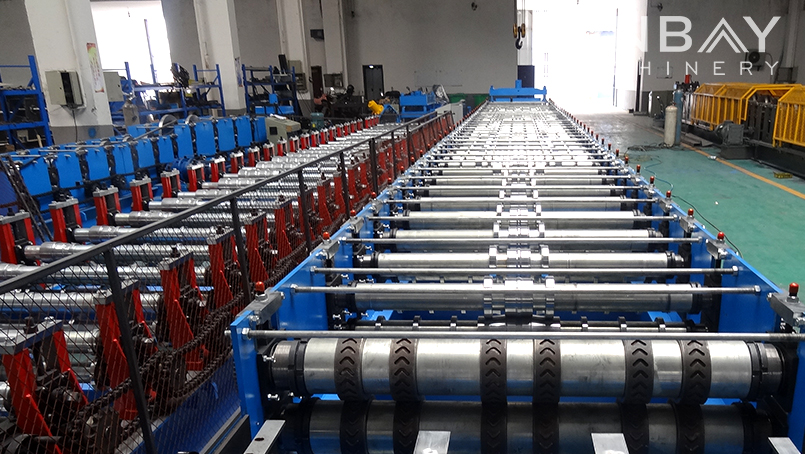

Description: This steel deck roll forming machine we exported it to India on 2016. Its height of profile drawing is 78mm, so we adopted 32 forming stations and 2 embossing stations. We also have exported longer steel deck roll forming machine to Angola, which has 38 forming stations.
| Metal Deck Roll Forming Machine | ||
| Item | Specifications | Optional performance |
| Machinable Material : | A) Galvanized Coil | Thickness(MM):0.6-1.2 or 1-1.5 |
| B) PPGI | ||
| C) Carbon steel Coil | ||
| Yield strength : | 250 - 550 Mpa | |
| Tensil stress : | 350 Mpa-550 Mpa | |
| Nominal forming speed(M/MIN): | 0-20 | * Or according to your requirement (Optional) |
| Forming station : | 26 stands | * According to your profile drawings (Optional) |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system | No | * Hydraulic punching or Punching press (Optional) |
| Main machine motor brand : | Sino-Germany Brand | * Siemens (Optional) |
| Driving system : | Chain drive | * Gearbox drive (Optional) |
| Machine structure: | Wall panel station | * Forged Iron station or torri stand structure (Optional) |
| Rollers’ material : | Steel #45 | * GCr 15 (Optional) |
| Cutting system : | Post-cutting | * Pre-cutting (optional) |
| Frequency changer brand : | Yaskawa | * Siemens (optional) |
| PLC brand : | Panasonic | * Siemens (optional) |
| Power supply : | 380V 50Hz | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
1.Q: What kinds of experience do you have in producing roof panel roll forming machine? A: Roof/wall panel (corrugated panel) roll forming machine is the most produced machine, we have many experience of this machine. We have exported to India, Spain, UK, Mexico, Peru, Argentina, Chile, Bolivia, Dubai, Egypt, Brazil, Poland, Russia, Ukraine, Kazakhstan, Bangladesh, Bulgaria, Malaysia, Turkey, Oman, Macedonia, Cyprus, USA, South Africa, Cameroon, Ghana, Nigeria etc. In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, furring channel roll forming machine, ceiling T bar roll forming machine, wall angle roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc. 2.Q: How many profiles can produce this machine? A: According to your drawing, specially the height and pitch of each wave, if they are the same, you could produce several sizes with different feeding coil width. If you want to produce one trapezoidal panel and one corrugated panel or a roof tile, we would recommend you a double layer roll forming machine to save your space and cost of machine. 3.Q: What is delivery time of trapezoidal roof panel making machine? A: 45 days to design from beginning to lubricate all rollers before shipment. 4.Q: What is your machine speed? A: Our forming speed is 0-20m/min adjustable by Yaskawa frequency changer. 5.Q: How could you control your machine’s precision and quality? A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners. 6. Q: What is your after-sales service system? A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
