Description

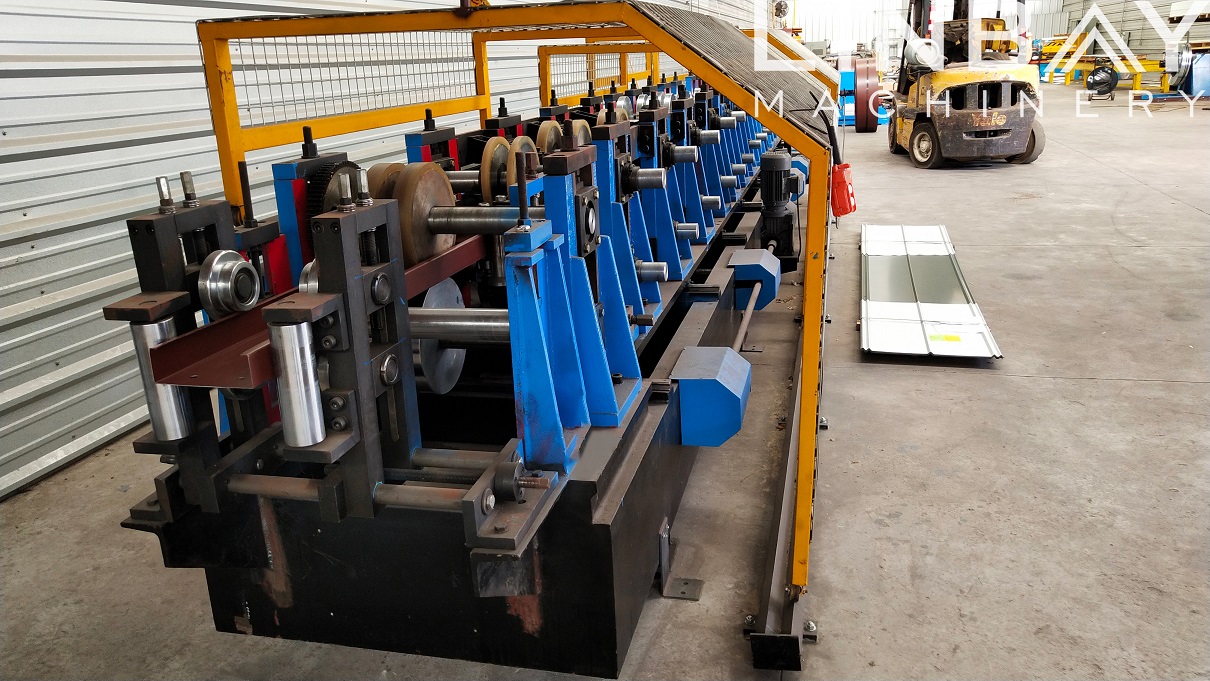

Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge RoofingSolutions, Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin, machineable size range as follow: Width:0-300mm, Height: 50-100mm, Thickness:1.5-3mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. The finished purlins meet JIS G standard, ASTM International Standard, AS/NZS International Standard etc. Simply the best purlin machine for your project. According to your section profile, size range, thickness range we could provide you different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors): Only to produce C/U section, change time: few seconds C/U/Z section-manual change whole line from C to Z, change time: 10 minutes C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes C/U/Z/M section-automatically change from C to Z, change time: few seconds Regarding the cutting unit ,you can choose the pre-cut, post cut or both. Gearbox driving system with cast iron stands are more durable and recommendable. If you only need to produce few sizes, we also suggest manually change sleeves, it’s more affordable. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.Application
Real Case A
Description: This C/Z/U/M purlin roll forming machine is our new innovation in 2018. This machine has been exported to Mumbai, India. This excellent machine could make C section, U section, M section and Z section purlins with thickness 1.5-4mm. The purlin line is equipped with servo feeder, leveler and automatic width-change and height-change system, also from C to Z only need to change 4 stations manually with change wheel. It could be operated whole line with one operator easily in 2 minutes. Linbay Machinery is your best choice for purlin roll forming solution. Real Case B
Description: This CZ purlin quick changeable roll forming machine is a mature production line. We have 10 years of experience in this machine. It’s more affordable, economic and it’s our best-seller. It adopts pre-cut system to avoid changing too many blades, which saves time for you. Sizes can be changed by motor automatically. Changing time from C to Z need 10 minutes. Linbay Machinery is your best choice for purlin roll forming solution. Whole production line of Purlin roll forming machine
Technical Specifications
| Purlin Roll Forming Machine | ||
| Machinable Material : | A) Galvanized Coil | Thickness(MM): 1.5-3 |
| B) PPGI | ||
| C) Carbon steel Coil | ||
| Yield strength : | 250 - 550 Mpa | |
| Tensil stress : | G350 Mpa-G550 Mpa | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system : | Hydraulic punching station | * Punching press (Optional) |
| Forming station : | 18-20 stations | |
| Main machine motor brand : | Shanghai Dedong (Sino-Germany Brand) | * Siemens (Optional) |
| Driving system : | Chain drive | * Gearbox drive (Optional) |
| Machine structure: | Wall panel station | * Forged Iron station (Optional) |
| Forming speed : | 10-20 (M/MIN) | * Or according to your profile drawings |
| Rollers’ material : | Steel #45 | * GCr 15(Optional) |
| Cutting system : | Pre-cutting | * Post- universal cutting (Optional) |
| Frequency changer brand : | Yaskawa | * Siemens (Optional) |
| PLC brand : | Panasonic | * Siemens (Optional) |
| Power supply : | 380V 50Hz | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
