Cable Tray Support and Clamps: Choosing the Right Solution
Cable tray support systems have been around for decades and are known for their versatility and durability. They are widely used in a variety of industrial and commercial installations, including power plants, petrochemical plants, pharmaceutical factories, and hospitals.
However, choosing the right cable tray support system for your specific application can be a daunting task. There are many factors to consider, including the type of cable tray, the weight and diameter of the cables, the environmental conditions, and the installation location.
To help you make an informed decision, it is important to understand the different types of cable tray supports and clamps available on the market today.
Types of Cable Tray Supports
1. Channel Supports: The most common type of cable tray support, channel supports consist of a continuous length of channel-shaped steel that is bolted or welded to the structure. They are available in a variety of sizes and can be used with different types of cable trays.
2. Ladder Supports: Ladder supports offer greater strength and load-bearing capacity than channel supports, making them ideal for heavy-duty applications. They consist of a series of welded or bolted steel rungs that support the cable tray.
3. Strut Supports: Strut supports are a versatile and cost-effective solution that can support almost any type of cable tray. They consist of a series of steel channels and accessories that can be easily assembled and adjusted on-site.

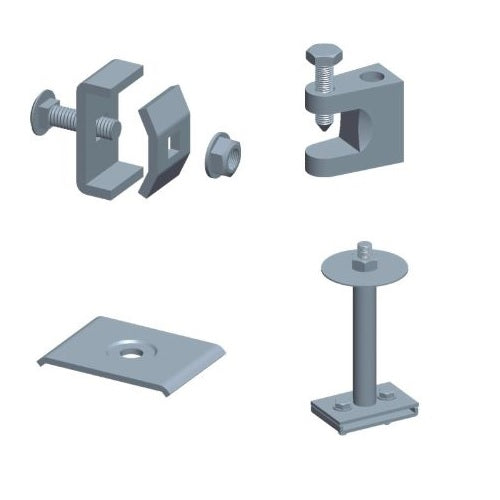

Types of Cable Tray Clamps
1. U-Bolt Clamps: U-Bolt clamps are the most common type of cable tray clamp and are used to secure the cable tray to the support. They consist of a pair of steel U-bolts that are threaded through the support and secured with nuts.
2. Beam Clamps: Beam clamps are used to attach the cable tray to beams or other structural members. They consist of a steel plate and a threaded rod that can be adjusted to fit the beam.
3. J-Hooks: J-Hooks are designed to support individual cables or bundles of cables within the cable tray. They are available in a variety of sizes and can be used with different types of cable trays.
Choosing the Right Cable Tray Support and Clamps
When selecting a cable tray support and clamp system, it is important to consider the following factors:
1. Load Capacity: The support and clamp system must be able to safely support the weight of the cables and any additional equipment mounted on the tray.
2. Environmental Conditions: The support and clamp system must be able to withstand the environmental conditions in which it will be used, including temperature, humidity, and exposure to chemicals.
3. Ease of Installation: The support and clamp system should be easy to install and adjust on-site, without requiring specialized tools or equipment.
